Rugged Edge Compute Powered by NVIDIA Jetson

We are bringing breakthrough innovation edge AI compute solutions to market to solve highly challenging problems for mission-critical applications in austere environments with NVIDIA’s family of Jetson embedded processors.

SYSTEL NVIDIA SOLUTIONS SHOWCASE
Robot with AI implemented.

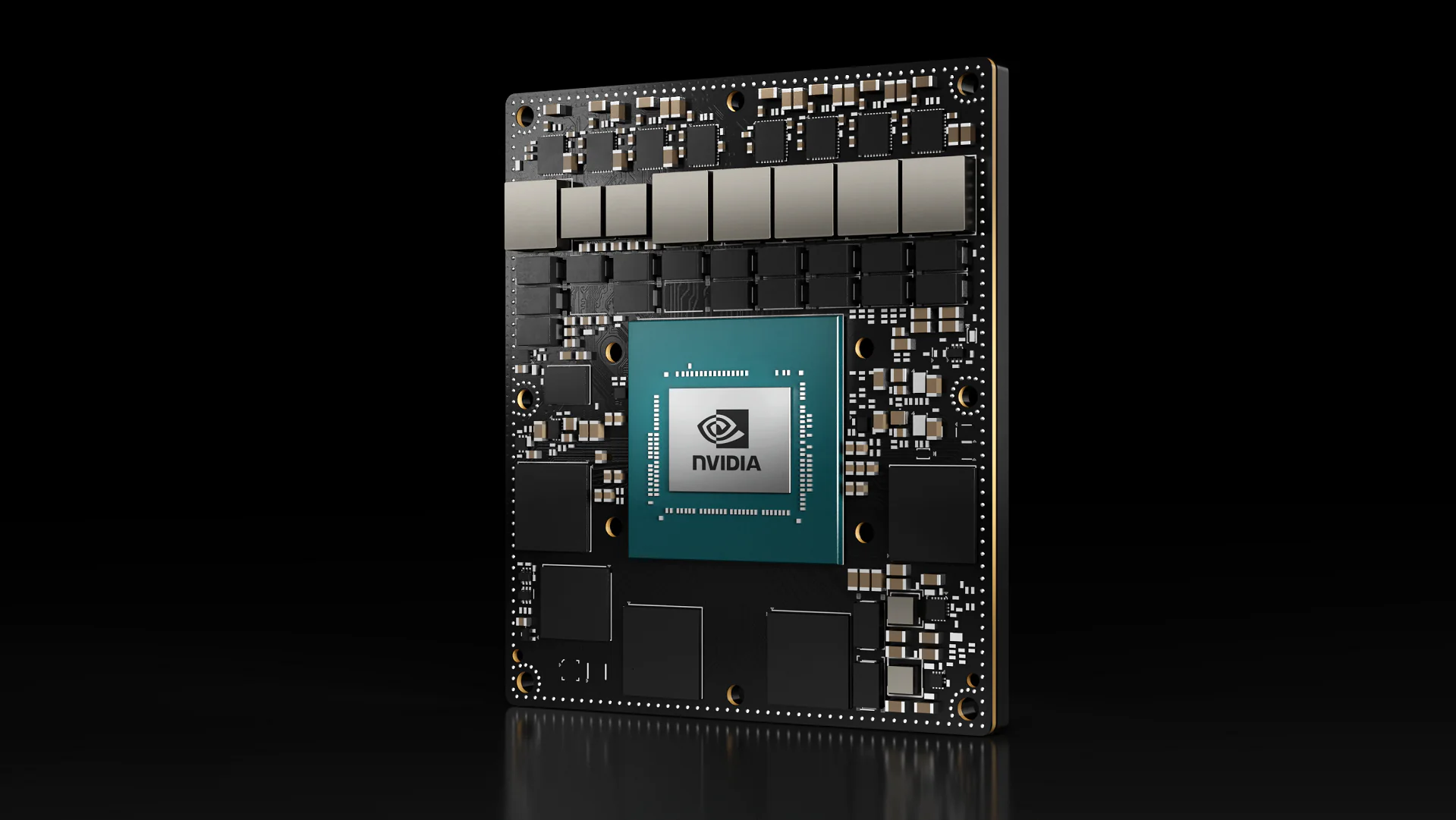

NVIDIA Jetson AGX Orin Processor

Our Approach

Introducing Systel’s Sparrow-Strike and Kite-Strike II – your go-to choices for advanced AI computing solutions. These systems bring a fresh perspective to MIL-SPEC rugged compute solutions, offering reliable performance without the need for a high-intensity experience.

We’ve chosen the NVIDIA Jetson Orin NX and NVIDIA Jetson AGX Orin processors as the driving force behind Sparrow-Strike and Kite-Strike II. These processors provide a solid foundation, ensuring these systems are not just efficient but also adaptable to various extreme environments.

Check out the visual breakdown below to see how Sparrow-Strike and Kite-Strike II, with the help of NVIDIA’s processors, deliver a reliable and straightforward approach to military-grade computing. Experience the ease of use and flexibility that our solutions bring, making them the practical choice for your AI computing needs.

Edge Computers & NVIDIA Power

At Systel, we are proud of our rugged, high-performance embedded edge computers, revolutionizing industry standards with seamless integration of NVIDIA Jetson technology. This strategic collaboration significantly boosts the efficiency of handling data-intensive tasks, particularly the real-time deployment of AI inference algorithms directly at the edge of networks. This capability is crucial for enhancing operational efficiencies in mission-critical applications where immediate decision-making is paramount. The backbone of Systel’s edge computing solutions lies in their resilient computers, which harness the power of NVIDIA GPUs. These systems not only deliver exceptional computing performance and density but also excel in supporting centralized sensor integration and data fusion, pivotal for maintaining operational continuity and accuracy in dynamic environments.

At the forefront of Systel’s product lineup are the Strike systems, renowned for their robustness and reliability in harsh conditions. The Kite-Strike II and Sparrow-Strike exemplify engineering excellence, boasting meticulous design processes that adhere to stringent standards. They are built upon open architectures and utilize Commercial Off-The-Shelf (COTS) technologies, ensuring compatibility and ease of integration with existing infrastructure. Embracing a Modular Open Systems Approach (MOSA), these systems offer flexibility and scalability, catering to evolving operational needs and future technological advancements.

See it in the Kite-Strike II

Jetson AGX Orin SOM

The Jetson AGX Orin SOM offers a power configuration of 15W to 60W and can achieve up to 275 TOPS of AI performance. With the same small form factor, you can get up to eight times the performance of the Jetson AGX Xavier. There are three versions of the Jetson AGX Orin: 64GB, 32GB, and Industrial.

See it in the Sparrow-Strike

Jetson Orin NX Edge

With a power output that can be adjusted between 10 and 25 watts, the Jetson Orin NX offers up to 100 TOPS of AI capability in the smallest Jetson form factor. You may now achieve up to 3X and up to 5X the performance of Jetson AGX Xavier and Jetson Xavier NX, respectively. The Jetson Orin NX comes in 16GB and 8GB capacities.

Detailed Specifications of NVIDIA Processors Integrated into Systel Products

Jetson AGX Orin SOM

  • Power Configuration: The Jetson AGX Orin SOM is configured to operate within a versatile power range of 15W to 60W, providing adaptable performance capabilities tailored to diverse application demands.
  • AI Performance: Capable of achieving up to 275 TOPS (Tera Operations Per Second) of AI performance, the Jetson AGX Orin SOM represents a significant advancement in edge computing capabilities.
  • Form Factor: Despite its compact size, this processor offers up to eight times the performance compared to its predecessor, the Jetson AGX Xavier, making it an ideal choice for applications requiring high computational throughput in constrained spaces.
  • Variants: Available in multiple configurations including 64GB, 32GB, and Industrial versions, the Jetson AGX Orin SOM caters to various deployment scenarios ranging from standard industrial environments to ruggedized deployments requiring enhanced durability and reliability.

By leveraging the computational prowess of NVIDIA’s Jetson AGX Orin SOM, Systel ensures that their edge computing solutions deliver unparalleled performance, resilience, and scalability, empowering organizations to achieve new levels of operational efficiency and innovation across diverse sectors and applications.

Spec: Jetson Orin NX Edge Jetson AGX Orin SOM
AI Performance: 100 TOPS 275 TOPS
GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores 2048-core NVIDIA Ampere architecture GPU with 64 Tensor Cores
GPU Max Frequency: 918MHz 1.3GHz
CPU: 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3
CPU Max Frequency: 2 GHz 2.2 GHz
DL Accelerator: 2x NVDLA v2 2x NVDLA v2
Memory: 16GB 128-bit LPDDR5 102.4GB/s 64GB 256-bit LPDDR5 204.8GB/s
Storage: Supports external NVMe 64GB eMMC 5.1
Power: 10W – 25W 15W – 60W
Systel's Sparrow Strike PNG

Interested to see how we implement the Jetson Orin NX Edge into our Sparrow-Strike?

DOWNLOAD THE DATA SHEET
Systel's Kite Strike II

Want to learn how we implement the Jetson AGX Orin SOM into our Kite-Strike II?

DOWNLOAD THE DATA SHEET
