Kite-Strike I

Fully Rugged NVIDIA Jetson AGX Xavier Embedded Edge Computer. SWaP-Optimized Edge AI and Computer Vision Mission Computer

Systel Kite-Strike family of embedded computers.

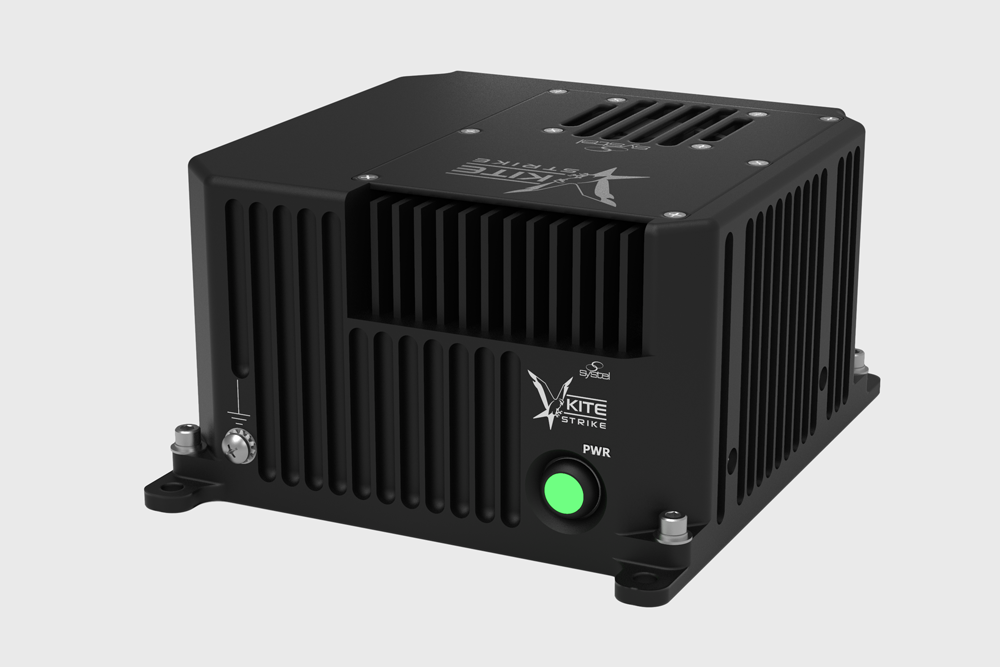

Kite-Strike I

Kite-Strike I is a fully rugged, single line replaceable unit (LRU) embedded edge computer purpose-built for deployment in harsh environments for demanding AI and ML sensor ingest and data processing applications. Integrating the NVIDIA Jetson AGX Xavier system-on-module (SOM), Kite-Strike I is engineered and manufactured for extreme SWaP-optimization and incredible compute performance. The Jetson AGX Xavier features 32 TeraOPS (TOPS) of peak compute and 750 Gbps of high-speed IO, providing the performance to handle visual odometry, sensor fusion, localization and mapping, obstacle detection, and path planning algorithms critical to next-generation autonomous systems. Kite-Strike I is engineered with a standards-based approach utilizing open architectures and COTS technologies, and is aligned to OSA/MOSA mandates.

  • Project Convergence 2021 (PC21) – successfully demonstrated Aided Target Recognition (AiTR)
  • WINNER: Platinum Honoree (highest-tier award) – 2021 Technology Innovators Awards from Military & Aerospace Electronics
  • WINNER: Four-Star Best in Show Embedded Computing (highest level award) at 2021 AUSA Annual Meeting and Exposition from Military Embedded Systems

  • SFF SWaP-Optimized 6.75”W x 6.75”D x 4.00”H (base model)
  • NVIDIA Jetson AGX Xavier SOM
    • GPU: Volta Architecture; 512 CUDA Cores, 64 Tensor Cores
    • CPU: 8-Core Carmel ARM v8, 65-Bit
    • Memory: 32GB
    • Storage: 32GB eMMC 5.1
  • Dense IO including multiple GbE, USB, CAN, serial
  • Modular add-on expansion “slice” design
  • Supports numerous configuration options including multi-port and multi-format video capture and encode
  • Enables real-time inferencing and provide centralized sensor ingest and data fusion support
  • MOSA-aligned
  • Fully rugged and sealed
  • Operating temperature: -40C to +71C (configuration dependent)
  • MIL-STD-810H Shock | Vibration | Altitude | Humidity | Sand and Dust | Fluids/Rain
  • MIL-STD-1275E/704F 28VDC Power (no power hold-up)
  • DO-160G  various
  • IP66 sealed
  • AI and ML edge processing
  • Computer and machine vision
  • Aided target recognition (AiTR)
  • 360 degree situational awareness (360SA)
  • Command, control. communication, computers, intelligence, surveillance, and reconnaissance (C4ISR)
  • Industrial robotics and automation
  • Uncrewed/unmanned and autonomous aerial, ground, and maritime vehicles/systems

Check Out Our White Paper: AI Compute at the Tactical Edge
