Hawk AI
Next-generation MIL-SPEC rugged embedded edge AI compute platform, powered by the NVIDIA Jetson AGX Thor. Delivering workstation-class AI performance in a fully sealed chassis engineered for the most demanding autonomous and compute-heavy mission-critical applications across air, land, and sea domains.

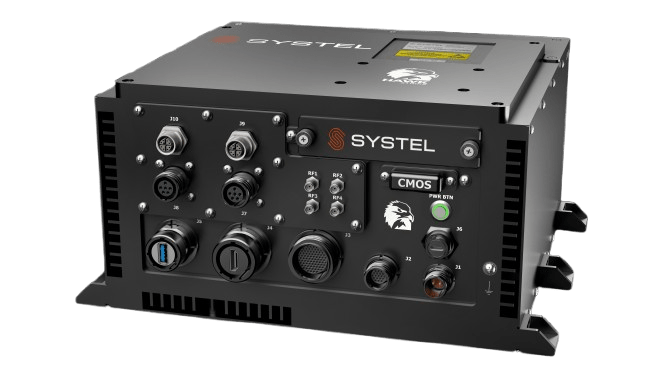

Introducing Hawk AI
Hawk AI is currently in pre-production. Contact us to learn more or to inquire about Engineering Development Units (available soon).
Hawk-Strike® AI. Mission AI. Edge deployed.
Hawk AI is a next-generation, fully rugged embedded edge AI compute platform, delivering workstation-class AI performance in a MIL-SPEC sealed chassis engineered for processing demanding workloads in the harshest environments.
Powered by the NVIDIA Jetson AGX Thor, Hawk AI brings data center-class AI inference, computer vision, and sensor fusion capability into deployable, platform-integrated edge systems. With a Blackwell GPU architecture, 128GB unified memory, and robust configurability and expansion capabilities, Hawk AI is purpose-built for the most demanding autonomous and compute-heavy mission-critical applications across air, land, and sea domains.
Hawk AI is part of Systel’s Strike family of MIL-SPEC rugged embedded computers, and specifically the Hawk-Strike product line of full-size workstation-class embedded solutions. Designed using a modular open systems approach (MOSA), Hawk AI offers significant system expansion and configurable I/O for all-domain mission and platform integration, including high-bandwidth networking, multi-channel RF, and flexible storage, configured to match the mission.
Workstation-Class Edge AI
NVIDIA Jetson AGX Thor with 2,070 FP4 TFLOPS and 128GB unified memory. Blackwell GPU architecture purpose-built for AI inference, computer vision, sensor fusion, and autonomous systems at the edge.
Mission-Configured
Robust base IO with 2.5GbE with TSN, CAN FD, serial, GPIO, and USB 3.0 and USB-C. PCIe Gen5 expansion with options for high-bandwidth networking up to 25GbE, multi-channel RF, and additional display outputs, configured to match the mission. Supports latest NVIDIA JetPack with Systel board support package (BSP).
MIL-SPEC Rugged
Engineered to meet MIL-STD-810H environmental standards: temperature (-46°C to +65°C operating), vibration, shock, humidity, altitude, sand and dust, and fluid ingress. MIL-STD-461G EMI/EMC. Fully sealed, black anodized machined aluminum 6061-T6 chassis.
Comprehensive Lifecycle Support
Backed by Systel's 35+ years of fielded embedded computing engineering and thousands of units deployed globally. Hawk AI includes a 3-year product warranty with EOL and configuration management for program confidence from day one through end of life.
Hawk-Strike AI Specifications
| MODEL NUMBER: EC301A | |
| Chassis | Black anodized machined aluminum 6061-T6 · 12.8″W × 11.6″D × 6.2″H · 16 lbs (base configuration) · Forced air convection cooling (no air over electronics) |
| Processing | NVIDIA Jetson AGX Thor (T5000) · 2,070 FP4 TFLOPS · 2560-core Blackwell GPU · 14-core ARM CPU · Thor module is USA country of origin |
| Memory | 128GB LPDDR5 onboard |
| Storage | Internal m.2 NVMe or removable u.2 NVMe SSD |
| Expansion | PCIe Gen5 x8 · M.2 Key M NVMe · M.2 Key E wireless · MCIO x8 · Options for 10/25GbE networking, RF ports, and additional display outputs via expansion cards |
| IO | (1) USB-C · (1) USB 3.0 · (1) HDMI · (2) 2.5GbE w/TSN · (4) CAN FD · (4) serial · (8) GPIO |
| Power | 28VDC · Max system power up to 220W · MIL-STD-1275E; 704F |
| OS | NVIDIA L4T based on Ubuntu Linux with Systel board support package |
| Temperature | Operating: -46°C to +65°C (MIL-STD-810H, Method 501.7 and 502.7, Proc. II) · Non-operating: -55°C to +85°C |
| Vibration | MIL-STD-810H, Method 514.8, Proc. I, Cat. 20 · Composite Two-Wheeled Trailer · 4.0G, 40min/axis |
| Shock | MIL-STD-810H, Method 516.8, Proc. I · 40g at 11ms, Ground · Crash Hazard: MIL-STD-810H, Method 516.8, Proc. V · 75g at 6ms, Ground |
| Humidity | MIL-STD-810H, Method 507.6-7, Proc. II · RH 95%, 60°C, Aggravated |
| Altitude | Operating: 50,000 ft. (MIL-STD-810H, Method 500.6, Proc. II) · Storage: 55,000 ft. (MIL-STD-810H, Method 500.6, Proc. I) |
| Sand and Dust | MIL-STD-810H, Method 510.7, Proc. I and II · IP6X |
| Fluid Ingress | MIL-STD-810H, Method 506.6, Proc. II · IPx7 |
| EMI/EMC | MIL-STD-461G · CE101, CE102, CS101, RE102 |
| Warranty | 3-year product warranty · EOL and configuration management included |
Unless otherwise noted, all environmental specifications are designed to meet with testing pending.
